Use the information in the following sections to identify the hardware features located on the front and rear panel.

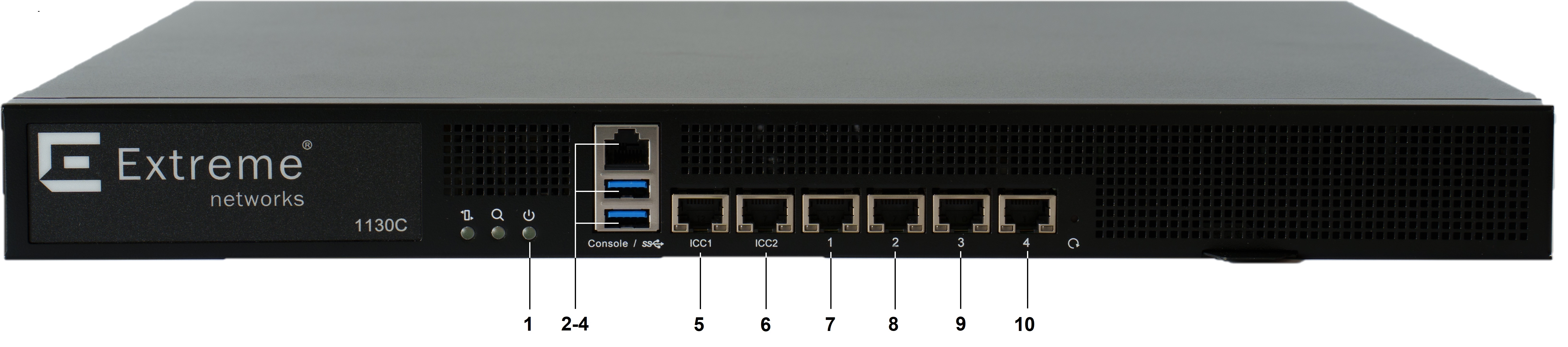

| Callout | Description |
|---|---|
| 1 | Power LED |
| 2 | RJ45 Console port |
| 3 | USB 3.0 port 1 |
| 4 | USB 3.0 port 2 |
| 5 |
Inter-Cluster-Connect port 1 |
| 6 | Inter-Cluster-Connect port 2 |
| 7 | Data port 1, GbE RJ45 |
| 8 | Data port 2, GbE RJ45 |
| 9 | Data port 3, GbE RJ45 |
| 10 | Data port 4, GbE RJ45 |

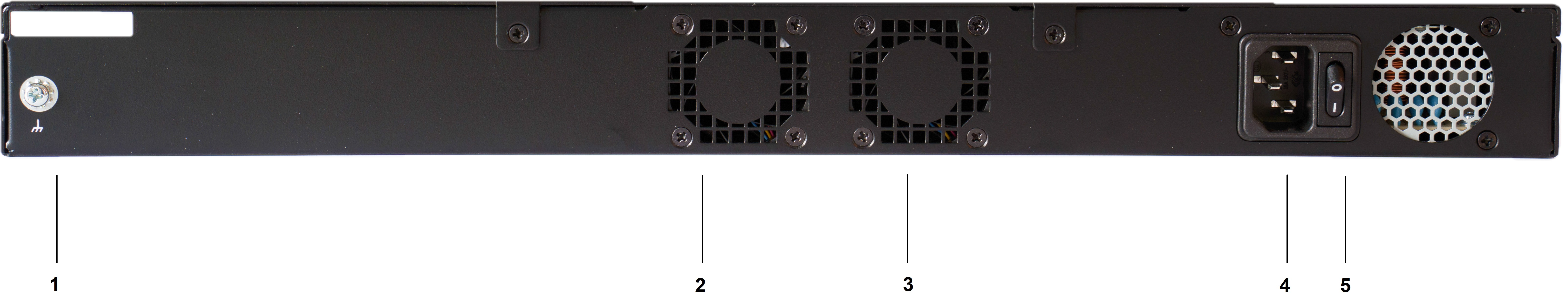

| Callout | Description |
|---|---|
| 1 | Grounding screw |
| 2 | Cooling fan |
| 3 | Cooling fan |
| 4 | Plug |
| 5 | On/Off switch |
